Bitumen – PMB and emulsion tanks
Bitumen – PMB and emulsion tanks

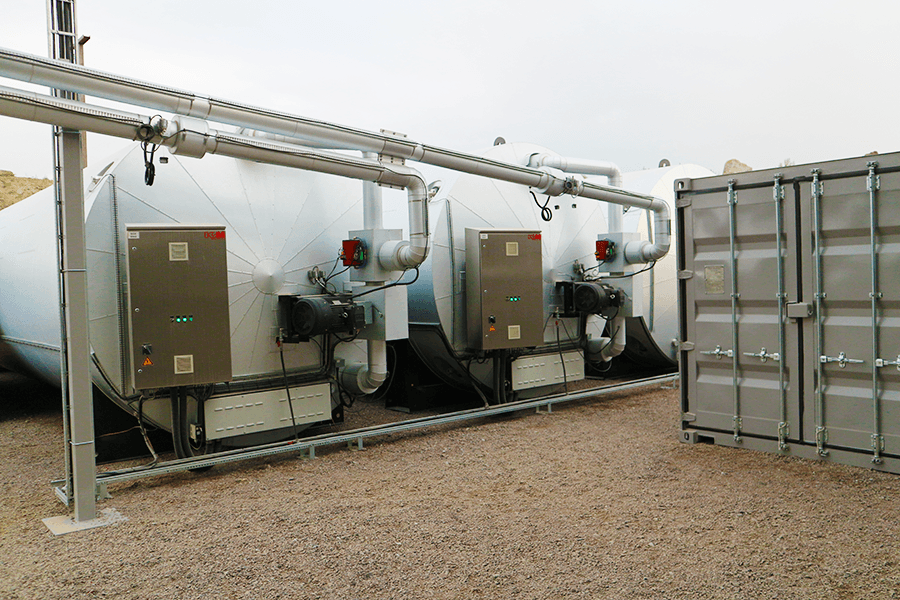

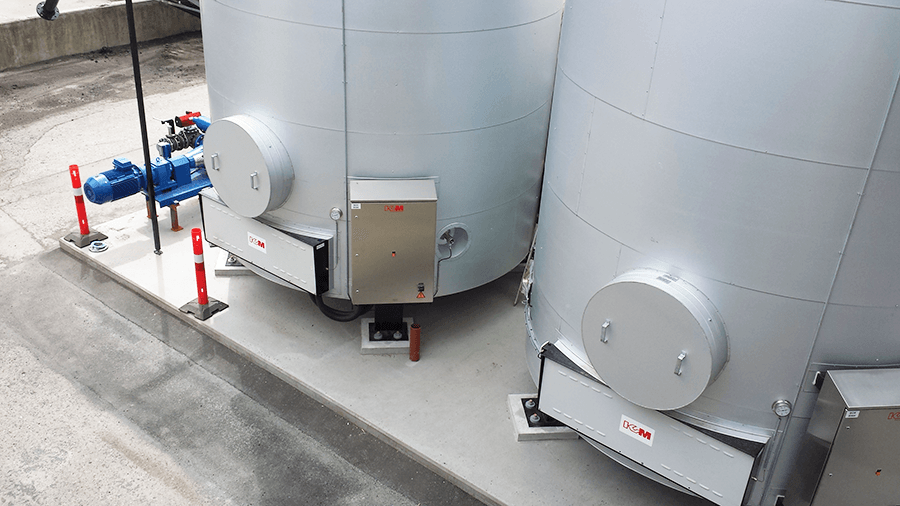

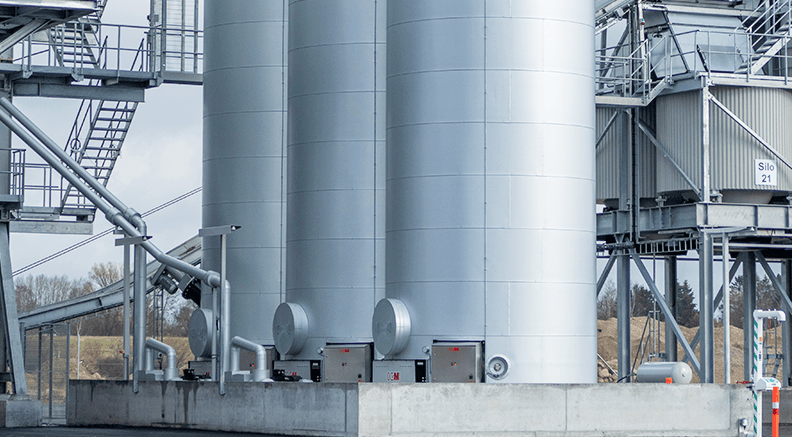

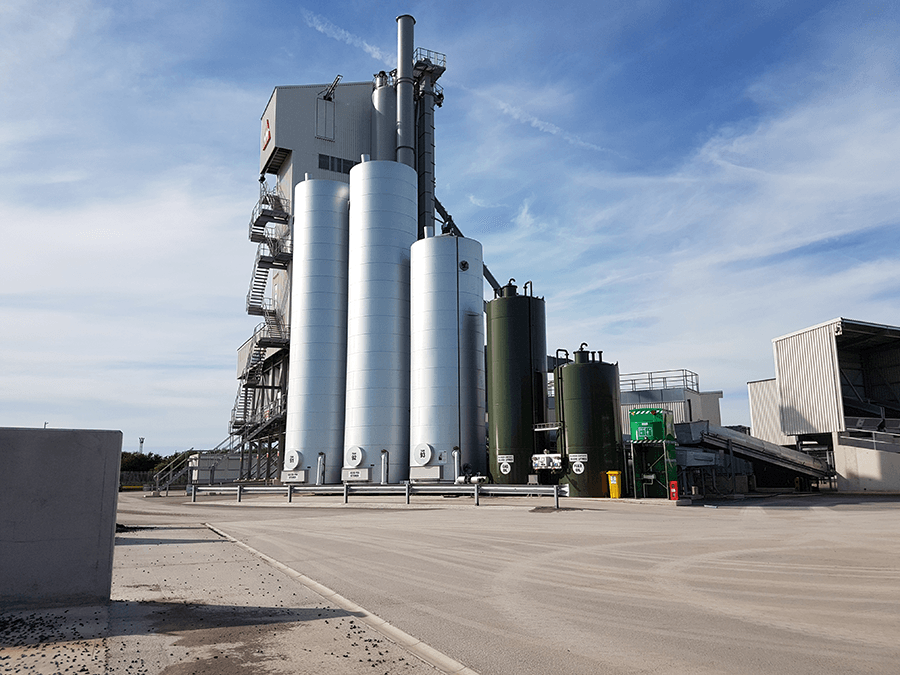

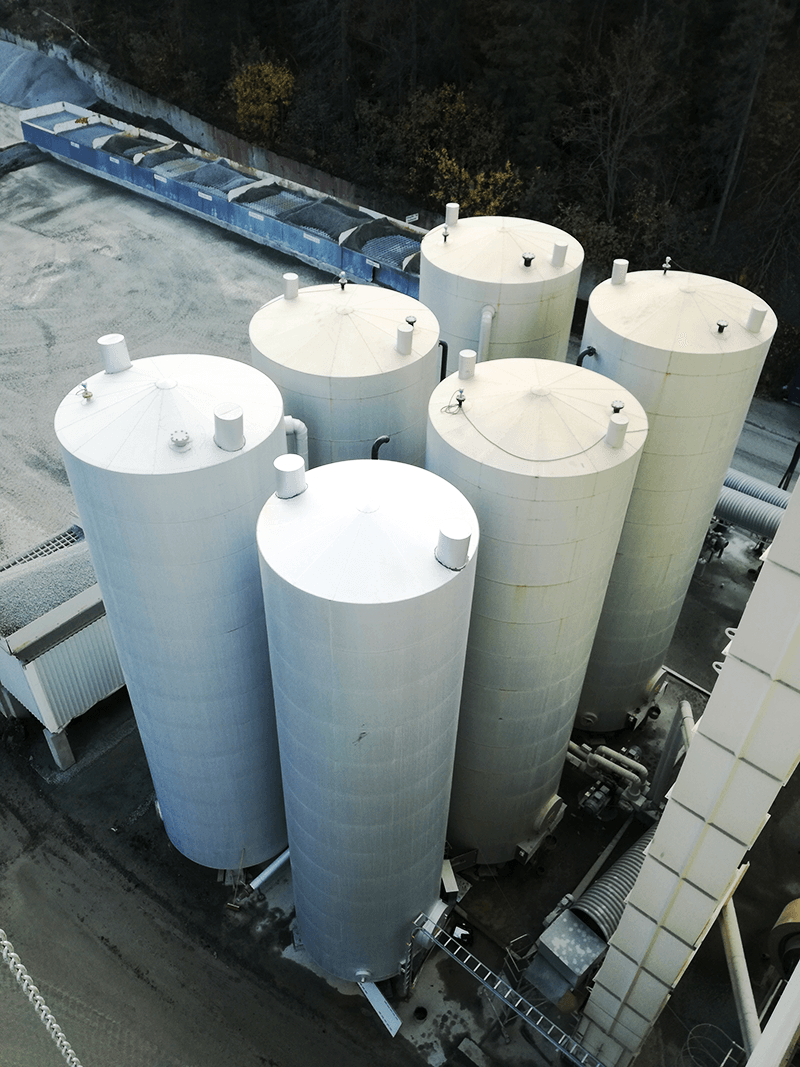

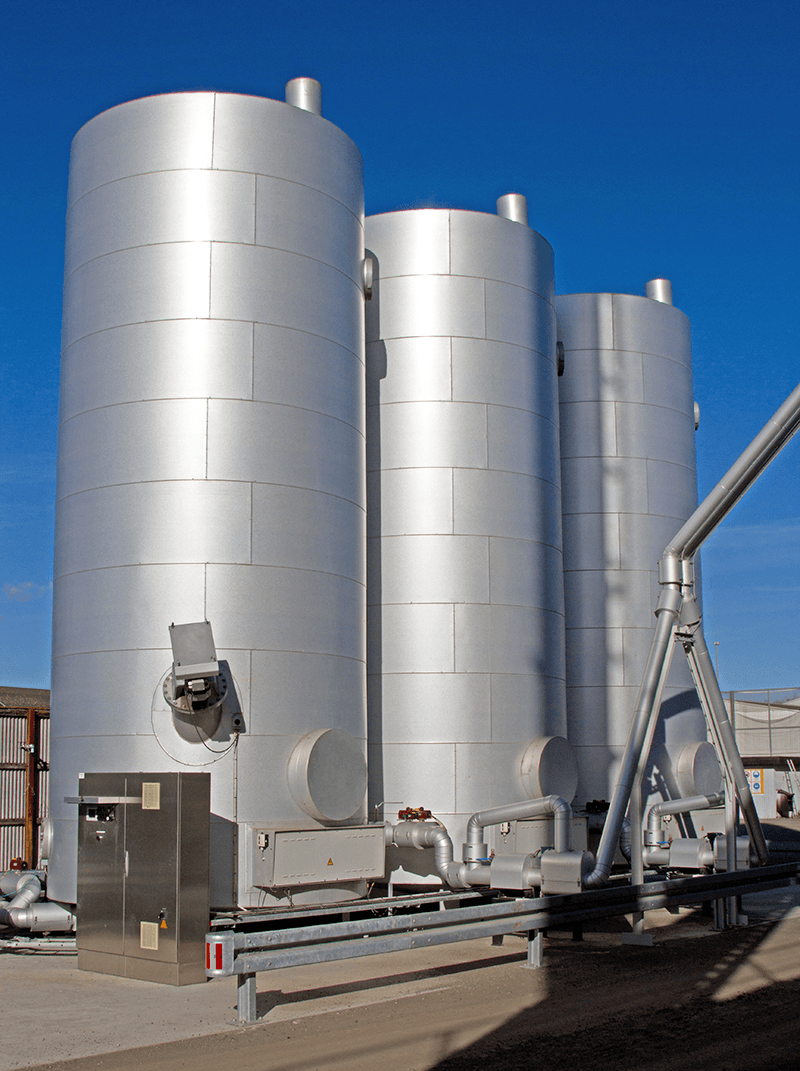

Stationary round bitumen tanks in horizontal or vertical design from 50-135 m3. Or 85 m3 horizontal movable tank with integrated pump for filling and dosing.
The tanks are as standard with 300/200 mm insulation cladded with Aluzinc plate.
The bitumen tanks are heated by electric heaters, which are mounted under the tank bottom. The heating is monitored and controlled automatically by a 2-stage power optimized control system, which is mounted in a stainless steel cabinet by the tank. The tank is designed according to European safety standards. Dosing pumps for both 1-line and 2-line systems are offered according to applicable regulations and customer requirements.
Dosing pumps for both one- or two-string pipe systems are adapted to the individual task as well as bitumen filling pumps for safe filling from the tank truck including control, electric heated and insulated pipe systems.
Features
- Environment friendly – superior heating and insulation
- Large heat transfer area to the bitumen using the full tank bottom area
- Parallel electrical coupling for high energy to the melt bitumen
- Heating power – electric serial coupling for maintaining the temperature
- Modular design
- 300 mm insulation fixed without radial holders
- EN 1090 EXC 2
- Meets Euro bitumen safety standards
- Possibility for large volume tanks
- Empty via bottom or via side flange
- Udvendig beklædning med glatte alu-zink plader reducerer overfladeafkøling i forhold til profilplader
- Prefabricated modular piping system, supplied in modules finished with heating and insulation
