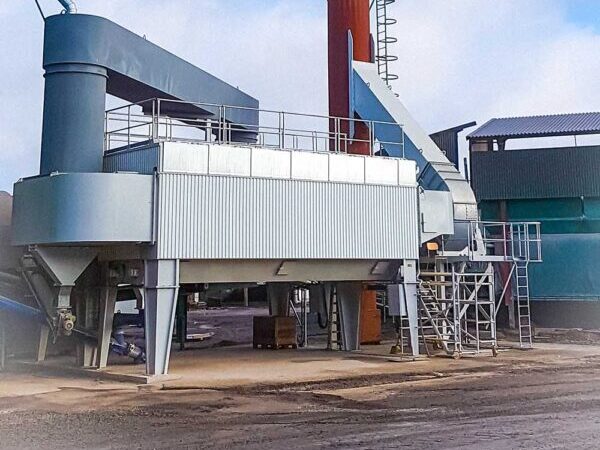

KVM Bag Filter System with automatic cleaning process adapted to operating conditions. Compressed Air Cleaning controlled by the differential pressure across the filter, which provides efficient cleaning with minimal compressed air consumption.

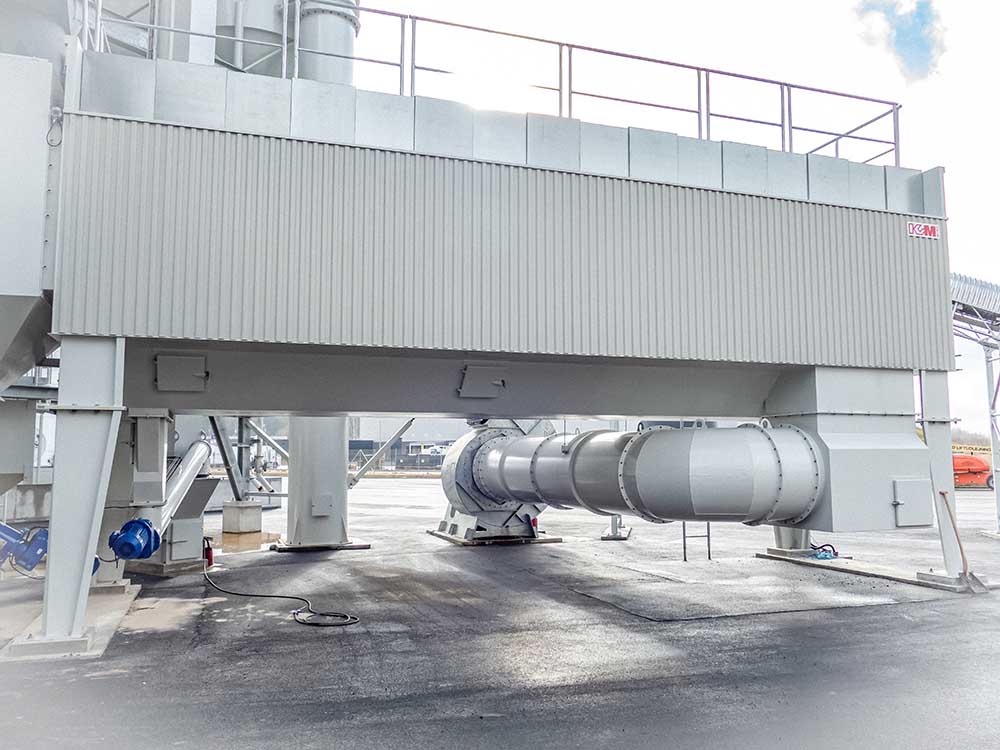

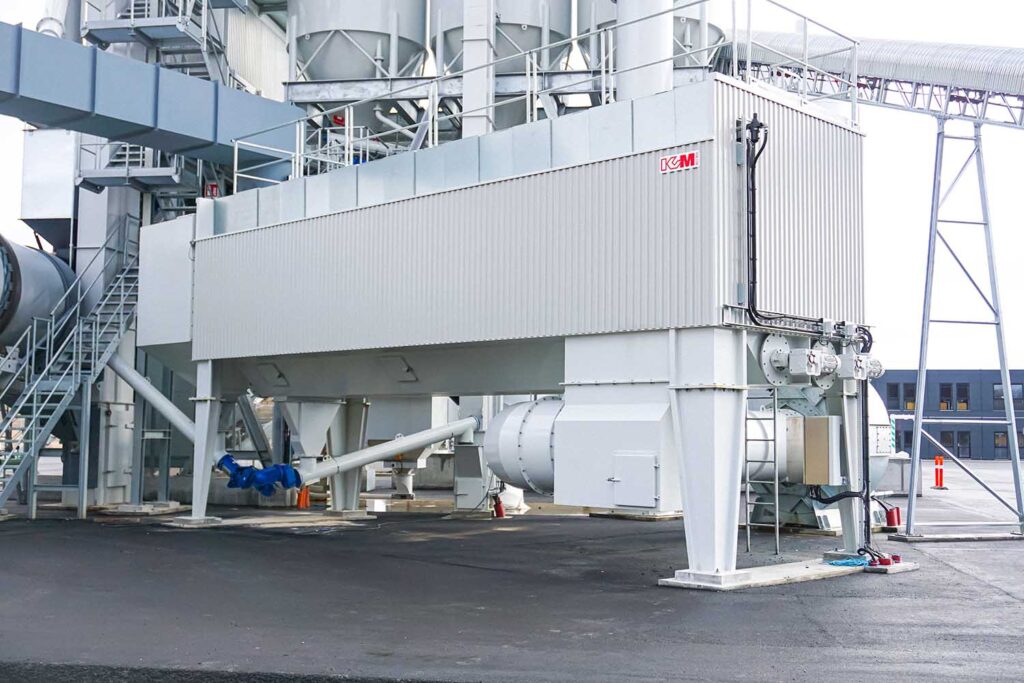

The Filter Housing is made of low corrosion steel plates and is insulated and sheeted to limit condensation and heat loss. Supplied as standard with coarse separator. Filter capacity from 25,000 to 100,000 m³/h.

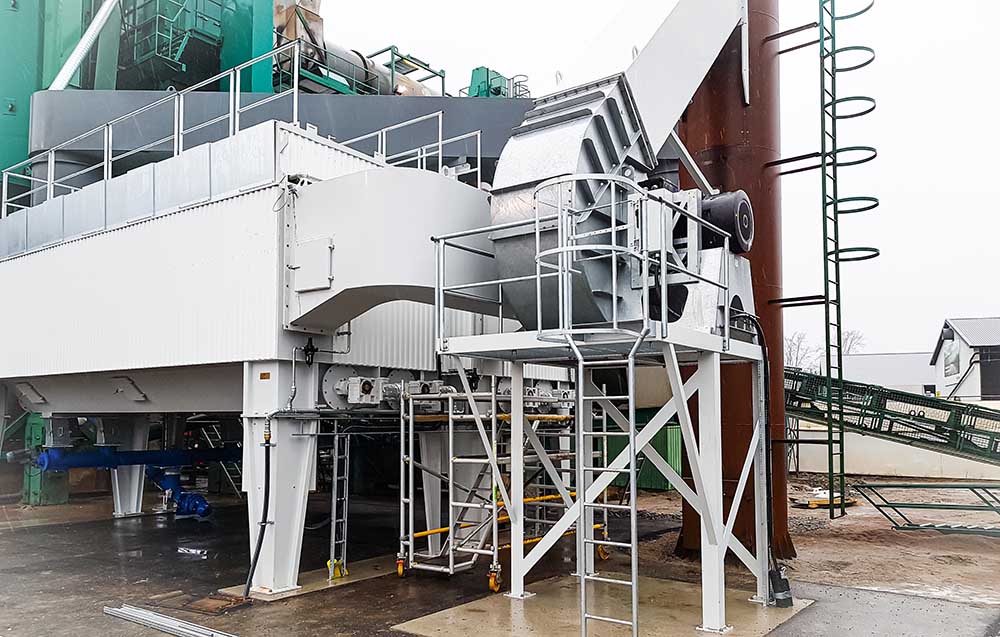

KVM hot-dip galvanized fans with economically variable speed control as well as bags and bag cages quality according to task.
Filterposerne er som standard fremstillet i Aramid, der tåler høj temperatur.
- 550 g/m2 aramid filter bags as standard
- Less than 10 mg/m3 emission guarantee
- Low temperature drop in the filter
- Compact and efficient
- Available with steel skids
- Available with on board fan and stack
